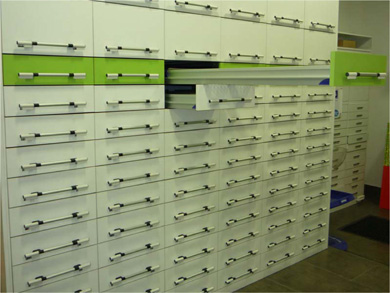

HX Pharmacy Drawer System

The HX Drawer System is the most commonly used drawer for pharmacy storage. Made with high-quality materials the greatest care is even taken over the smallest details, to produce drawers of the highest standard.

  • Thanks to its total, telescopic extraction, maximum capacity combined with a considerable saving of space are guaranteed ( 10% more in comparison with the traditional drawer ) result in an increased overall capacity of the whole structure.
  • All the drawers have transparent sides and upper drawers have a transparent base to make it easy to identify all the products.
  • A large range of accessories and separators are available, enabling the drawers to be easily labelled and divided.
  • Central locking is also available.
  • Optional timber drawers fronts and cladding packs available in a wide range of finishes.
  • Customised configurations available.

Dimensions

 HT1_80THX1_105THX1_110THX1_125T
Item CodeFPD-09967FPD-09968FPD-09969FPD-09970
Height2,200mm2,200mm2,200mm2,200mm
Depth814mm1,031mm1,131mm1,231mm
Width434mm434mm434mm434mm
Fronts Height105-140-210-280//125-250mm
Inside Depth650mm900mm1,000mm1,100mm
Inside Width2 x 170mm2 x 170mm2 x 170mm2 x 170mm
Inside Height100-135-205-275//120-245mm

Features

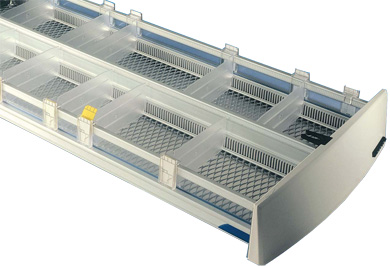

Drawer with Clear Sides

Mesh Bottom

Drawer Front Labelling Kit

Pullout Step

Anti-static Rollers

Rear Tiew Bar for Stability

Wall Fixing

Floor Fixing

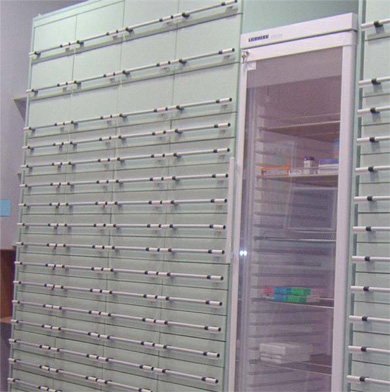

HX Pharmacy Drawer SystemHX Pharmacy Drawer System with Cold Storage UnitHX DrawerHX Drawer
